Product Description
(1). when several hydraulic jacks work at the same time, they should be directed by someone to make the lifting or falling simultaneously. Two adjacent hydraulic jacks shall be supported with wooden blocks to ensure that the gap is secured against sliding.
(2). when using hydraulic jack, always pay attention to the sealing part and pipe joint part, and must ensure its safety and reliability.
(3). hydraulic jacks are not suitable for sites where acids, alkalis, or corrosive gases are applied.

Note: In order to operate correctly, all cylinders need to be connected to a solid lifting surface.
The use of cylinders on sandy, clay or loose surfaces can lead to cylinder damage.

10 ton Hydraulic Ram Jack Technical Parameter
Clear circle marks, firm and will not burst.
The joint adopts threaded ZG3/8" fast joint.
Thread locking, compact structure.
Tonnage :10T
Stroke: 10MM (0.4 inches)
Self height: 41mm
Outer diameter: 60*45mm
Internal diameter: 45mm
Weight: 1.6kg
Effective area: 15.89cm

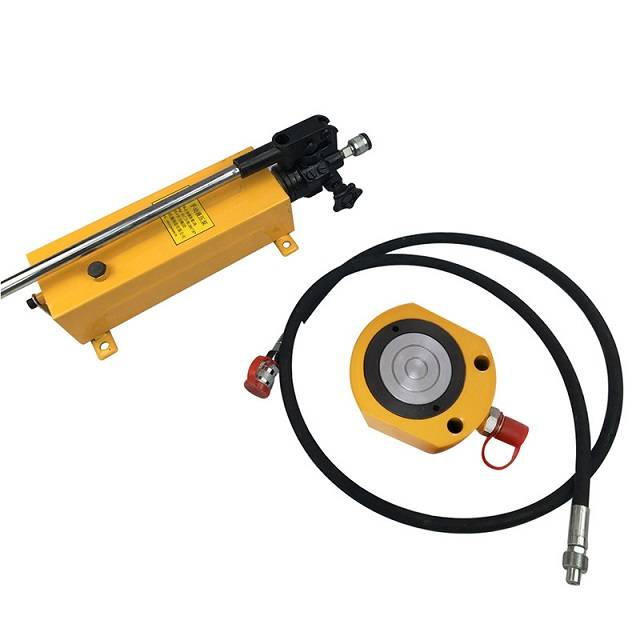

CP-180 Hydraulic Hand Pump Technical Parameter
Hydraulic pump body: Smooth surface, good sealing, no oil leakage.
Relief Valve: When working, tighten the return valve clockwise;When releasing pressure, loosen the return valve counterclockwise.
Oil Tube and Joint: Comes with 0.8m oil tube.
Model: CP-180
High pressure: 853PSI(60kg/cm²)
High pressure oil quantity: 20cc
Oil storage capacity: 400cc
Weight: 3.8kg
